全钢扣槽式网络地板
所属分类:全钢扣槽式网络地板
起订量:
≥1件
关键词:
描 述:
产品介绍

40bd571a1d1754c3effece06cd8dc5fefc6c95170db6354a6d82f7f1ba5b4d93c33305efabae6b7922fb859991fa7d67

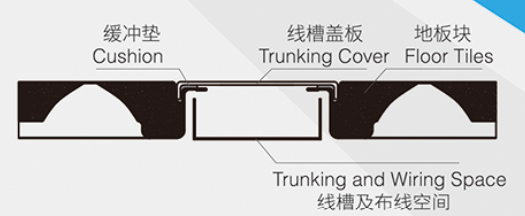

灵活方便的布线功能;模块化线槽拼装方便,可任意槽道里互换,减少投资,揭开线槽盖板可任意布线,不需反复揭开地板;地插座与边盖板任意互换,不用切割地板;每块盖板上设有出线口,可随意出线。

Easy for the wiring and cabing,wires and cables put into thetrunk and without cut the panel.


扣槽式超低多功能网络架空地板的诞生,进一步增加了办公楼层净高空间,提升了办公写字楼的销售市场竞争力。

The floor of OA Super Low Network Raised Floor(Trunk) increases the net height space of office building and enhance the competitiveness of the office building market.


规格/Size: 500*500*28mm

组合尺寸:600*600*33mm




调节高度范围为35~150mm考虑与公用部位接口

The adjustment of the floor 35-150mm

铺设高度为50mm有效节省楼层空间高度

The best height is 50mm save the space of the room.

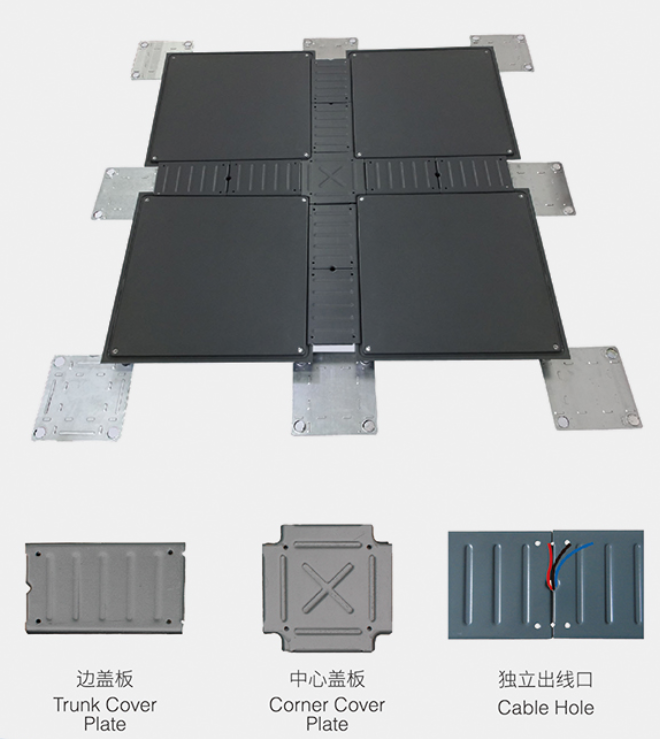

主要组件:

地板块、边盖板、中心盖板、中心角底板。


可选配件:

地插座、下线槽、出线口。




功能特点


更有效地节省楼层高度,高度仅为35mm,地板高度调节范围为35~150mm;

Save the room space,the lowest,the lowest is 35mm,adjustment height 35-150mm;

每块盖板都有出线口,随意出线,满足布线功能;

Every cover plate hole easy wiring, meet the requirements of wiring;

地插座与盖板可以任意互换,不用切割地板。

Cover plate socket interchange any place without cutting floor.


产品应用


适合于5A、写字楼、银行大楼、电力调度大楼、证券大楼、电信移动联通大楼期货大厦、软件研发中心、数据中心等有综合布线要求且密集度高以及对办公楼层净高要求严格的场合,更适合于旧楼地面的改造工程。

5 class office building,the first rate office building,Bank building,Electicity Control Building,Security Union Plaza,Telecom Building,Futures Trading Building,Software Design Center,date center and the place demand cabing and wiring.Andbest for the aging builing floors reform.

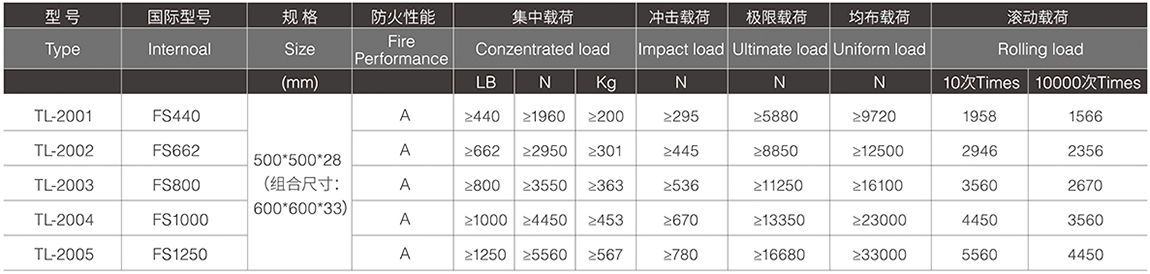

技术参数
